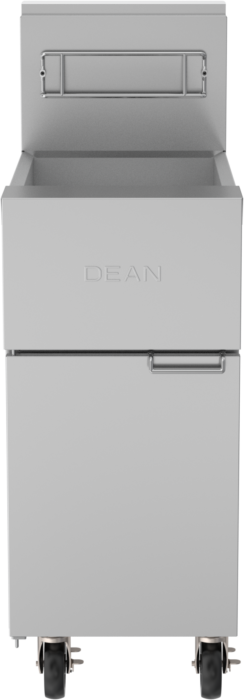

            GF40 Millivolt Doors Closed No Basket Front
            Energy Type
            Gas Type
            Number of Vats
            Controller
            Filtration
            Basket Lifts

            DEAN GF40

            Value Gas Fryer

            Models
            GF40

            Designed for versatile frying and dependable performance, GF fryers deliver consistent results across a wide range of menu items. With DEAN's trusted reliability and a spacious open frypot for easy cleaning, these fryers combine durability, efficiency, and great taste in every batch.

            Key Features

            Consistent Heat, Built to Last
            The Master Jet burner system features durable metal targets that create an expansive heat-transfer area, ensuring reliable and even heat distribution throughout the frypot. This advanced design delivers consistent cooking performance while standing up to the demands of high-volume kitchens.

            Designed for Cleaner Oil & Easier Maintenance
            The large cold zone and forward sloping bottom help collect and remove sediment from the frypot to safeguard oil quality and support routine frypot cleaning.

            Open Pot, Clean Results
            The open pot design provides an unobstructed heated area, allowing operators to easily monitor sediment buildup for better oil management. Heated from the outside, it offers quick access for cleaning and consistent frying performance, though with a smaller sediment zone than tube-style fryers.

            Specifications
            Oil Capacity
            50-lbs. (25L)PER FULL FRYPOT
            Pot Type
            Open Pot
            Frying Area

            14" x 15" x 5" (35.6 x 38.1 x 12.7 cm)PER FULL FRYPOT
            Energy Type
            Gas
            Power
            122,000 BTU/hr. (35.8 kW)PER FULL FRYPOT
            Controller
            Millivolt
            Standard Features
            • Open pot design is easy to clean
            • Millivolt temperature controls, no electric connection required
            • Durable temperature probe
            • Deep cold zone, 1-1/4" (3.2 cm) IPS ball-type drain valve
            • Master jet burner heat transfer system
            • Stainless steel frypot and door with aluminized cabinet sides
            Dimensions
            Width
            15.63" (39.7 cm)
            Depth
            30.88" (78.4 cm)
            Height
            46.13" (117.2 cm)
            Net Weight
            131-lbs. (59 kg)
            Gas Requirements
            Gas Type
            Natural Gas | LP
            Incoming Gas Pressure
            6" W.C. - 11" W.C.
            Domestic BTU Rating
            122,000 BTU/hr. (35.8 kW)
            Certifications
            • CSA Design (CA)
            • CSA (CA &US)
            • CSA Design (US)
            • NSF
            • CE Certified

            Resources

            Filter Options

            Filter
