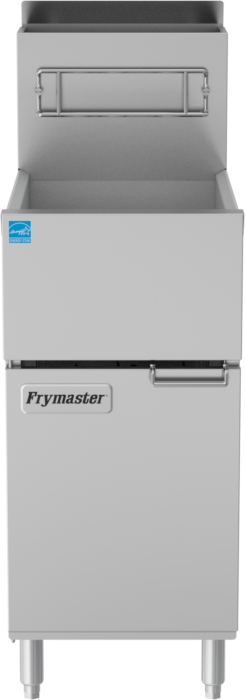

            ESG35 T Millivolt Doors Closed No Basket Front
            Energy Type
            Gas Type
            Number of Vats
            Controller
            Filtration
            Basket Lifts

            ESG35T

            High Efficiency Gas Fryer

            Models
            ESG35T

            This 35-lb. value fryer exceeds ENERGY STAR® standards with 52% efficiency, qualifying for energy rebates and lowering lifetime ownership costs. It matches the output of a 45-lb. fryer while saving 10 lbs. of oil per fill, uses 33% less energy, and recovers 2.5x faster than standard models. A deeper frypot and up to 40% larger cooking area deliver high production and consistently well-cooked results.

            Key Features

            Oil Saving Design
            Uses only 35 lbs. of cooking oil while delivering the same cooking capacity as a traditional 45-lb. fryer, helping reduce oil costs and waste.

            High Efficiency
            Operating at only 70,000 BTU/hr, the ESG35T uses 33% less energy and offers up to 2.5x faster recovery time than other comparable standard models.

            Energy Efficiency that Translates to Savings
            Frymaster's Thermo-Tube design provides an additional 2” of tube height and 36% more heat transfer surface area. This reduces the heat per square inch on the oil by 22%, for more efficient heat transfer and longer lasting oil life.

            Specifications
            Oil Capacity
            35 lb. (17L)PER FULL FRYPOT
            Pot Type
            Tube
            Frying Area

            14" x 13.75" x 4.2" (35 x 34.9 x 10.7 cm)PER FULL FRYPOT
            Energy Type
            Gas
            Power
            Domestic
            70,000 Btu/hr. (20.5 kw)PER FULL FRYPOT
            Export
            67,000 BTU/hr. (19.6 kW)PER FULL FRYPOT
            Controller
            Millivolt
            Standard Features
            • Exceeds ENERGY STAR guidelines and qualifies for energy savings rebates
            • Durable temperature probe
            • Millivolt controller - requires no electrical hook up
            • Thermo-tube design
            • Wide cold zone
            • Stainless steel frypot, door, and cabinet sides
            • 6" adjustable steel legs
            Dimensions
            Width
            15.5" (39.4 cm)
            Depth
            29.13" (74 cm)
            Height
            44" (111.8 cm)
            Net Weight
            165-lbs. (74.8 kg)
            Gas Requirements
            Gas Type
            Natural Gas | LP
            Incoming Gas Pressure
            6" W.C. - 11" W.C.
            Domestic BTU Rating
            70,000 BTU/hr. (20.5 kw)
            Export BTU Rating
            67,000 BTU/hr. (19.6 kW)
            Certifications
            • CSA (CA &US)
            • NSF
            • Energy Star

            Resources

            Filter Options

            Filter
