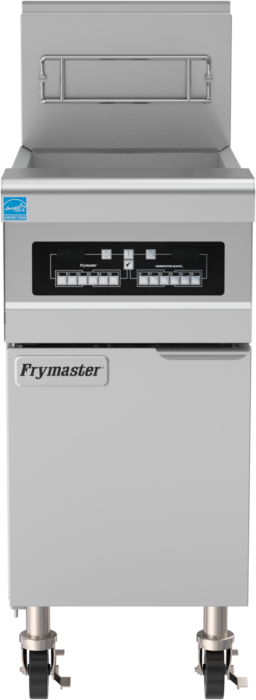

            PH155 CM35 Doors Closed No Basket Front
            Energy Type
            Gas Type
            Number of Vats
            Controller
            Filtration
            Basket Lifts

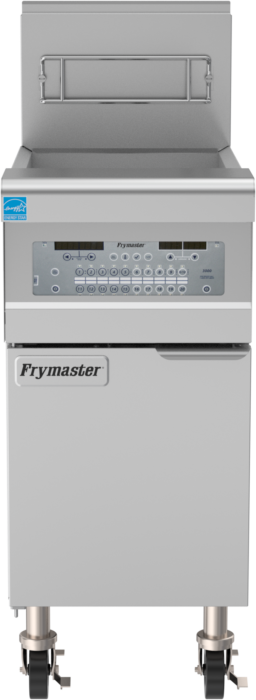

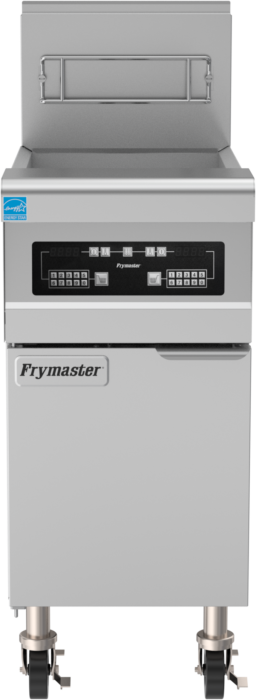

            H55

            High Efficiency Gas Fryers

            Models
            PH155

            The Frymaster H55 is a premium open-pot fryer that combines state-of-the-art technology with decades of frying experience and customer satisfaction to set the standard for high-efficiency frying. The ENERGY STAR® rated H55 fryer saves thousands of dollars annually on energy costs. H55 fryers have long been the trusted choice of chains and independent operators worldwide because their efficient, state-of-the-art heat transfer system, precise controls, and durability have stood the test of time.

            Key Features

            ENERGY STAR Certified Efficiency
            The industry’s first green fryer, meeting ENERGY STAR® standards long before they were established. H55 fryers are the foundation of Frymaster’s ever evolving conserving fryer technology.

            Confidence Backed by a 7-Year Warranty
            Protect your investment with an unmatched 7-Year Warranty that covers the entire combustion chamber—including the frypot, infrared burners, and combustion components. It’s long-term peace of mind built into every fryer.

            Advanced Heat Transfer System
            Infrared burners and a blower system deliver an ultra-refined air-gas mixture, ensuring optimal performance even in challenging environments such as high altitudes or areas with sub-optimal air circulation.

            Flexible Frying, Tailored to Your Kitchen
            The H55 fryer offers unmatched versatility with full-pot and split-pot models to suit a variety of cooking needs. Optional features like basket lifts, a standalone spreader cabinet, and built-in, manual filtration enhance productivity and adaptability in any kitchen setup.

            Specifications
            Oil Capacity
            50-lb. (25L)PER FULL FRYPOT
            Pot Type
            Open Pot
            Frying Area

            14" x 15" x 4.5" (35.6 x 38.1 x 11.4 cm)PER FULL FRYPOT
            Energy Type
            Gas
            Power
            80,000 Btu/hr. (21 kW)PER FULL FRYPOT
            Controller
            3010
            Standard Features
            • Deep cold zone with forward sloping bottom
            • Infrared burners ensure state-of-the-art heat transfer
            • Electronic ignition
            • Automatic melt cycle and boil-out temperature control
            • Drain safety switch
            • Stainless steel frypot, door, and cabinet sides
            • Center mounted RTD, 1° action thermostat
            • Legs
            Optional Features
            Split Frypot, Spreader Cabinet, External Oil (Rear), Front Washdown, Basket Lifts (not available with Digital Timer Controller)
            Dimensions
            Width
            15.63" (39.7 cm)
            Depth
            29.63" (75.2 cm)
            Height
            45.63" (115.9 cm)
            Net Weight
            160-lbs.(73 kg)
            Gas Requirements
            Gas Type
            Natural Gas | LP
            Incoming Gas Pressure
            6" W.C. - 11" W.C.
            Domestic BTU Rating
            80,000 Btu/hr. (21 kW)
            Power Requirements
            Domestic
            Controls
            120V 1 A
            Basket Lifts
            120V 3 A
            Export
            Controls
            220V 1 A | 230V 1 A | 240V 1 A | 250V 1 A
            Basket Lifts
            220V 2 A | 230V 2 A | 240V 2 A | 250V 2 A
            Certifications
            • CSA Design (CA)
            • CSA (CA &US)
            • CSA Design (US)
            • NSF
            • CE Certified
            • Energy Star
