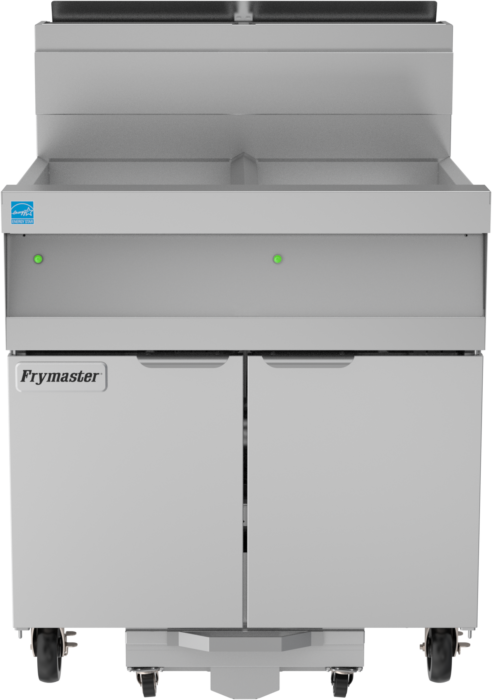

            SCFHD250 Thermatron Doors Closed No Basket Front
            Energy Type
            Gas Type
            Number of Vats
            Controller
            Filtration
            Basket Lifts

            HD50

            High Efficiency Gas Fryers

            With Built-In Filtration

            Models

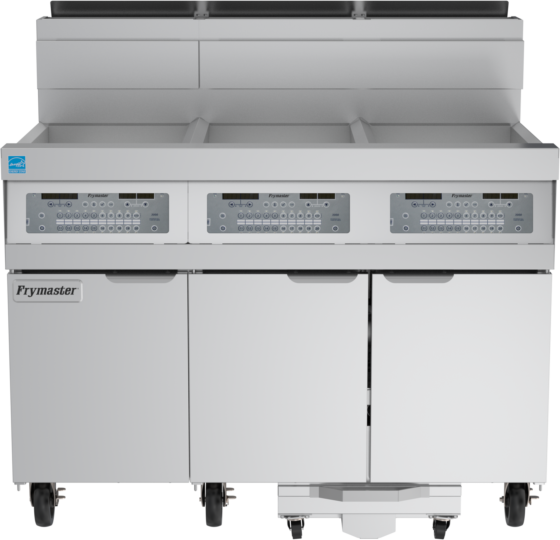

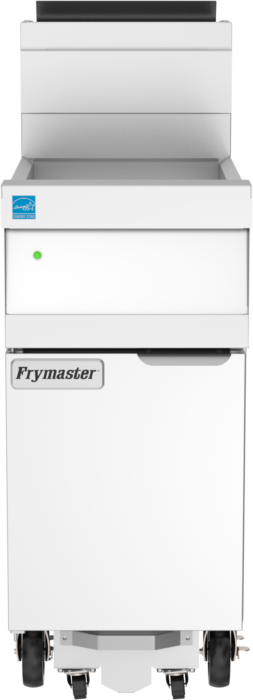

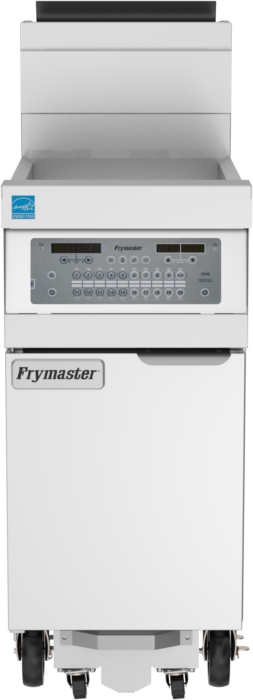

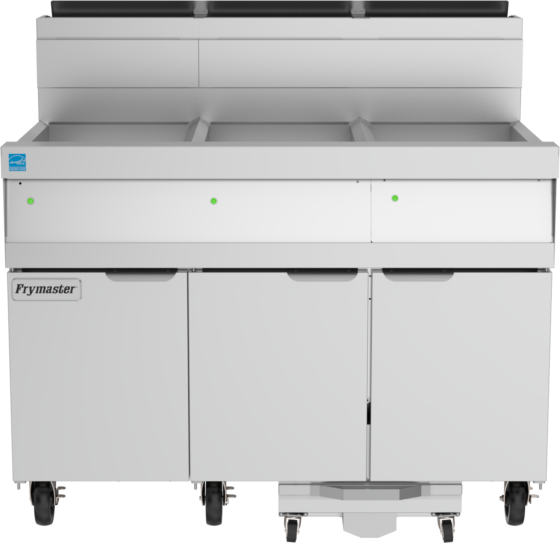

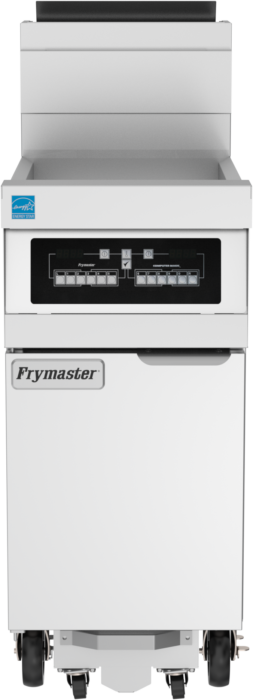

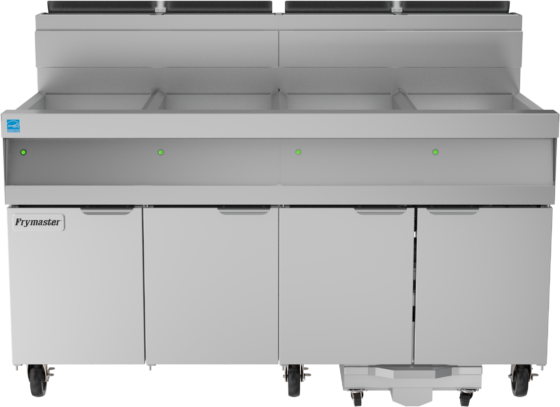

            CFHD150 | SCFHD250 | SCFHD350 | SCFHD450

            The ENERGY STAR® certified HD50 gas fryer is engineered for high-volume frying with rapid, controlled heat-up that protects oil quality and boosts kitchen efficiency. From French fries to bone-in chicken, it delivers consistent results with low idle costs and reduced gas consumption—making it a true MVP in any busy kitchen.

            Key Features

            Smart Design for Cleaner Frying
            Make quick work of high-sediment frying with a wide cold zone that traps debris away from the cooking area, preserving oil quality and food flavor. The sloped frypot bottom ensures fast draining and easy cleanup, keeping operations smooth and efficient.

            Energy Efficiency that Translates to Savings
            Frymaster's Thermo-Tube design provides an additional 2” of tube height and 36% more heat transfer surface area. This reduces the heat per square inch on the oil by 22%, for more efficient heat transfer and longer lasting oil life.

            Efficiency that Delivers
            HD gas fryers are built for high-volume performance with rapid, controlled heat-up, low idle costs, and minimal gas usage per pound of food cooked. These high-efficiency, tube-type fryers are the go-to choice for kitchens that demand speed, consistency, and savings.

            Specifications
            Oil Capacity
            50-lb. (25L)PER FULL FRYPOT
            Pot Type
            Tube
            Frying Area

            14" x 14" x 3.75" (35 x 35 x 8.9  cm)PER FULL FRYPOT
            Energy Type
            Gas
            Power
            100,000 Btu/hr. (29.3 kw)PER FULL FRYPOT
            Controller
            3010
            Standard Features
            • High efficiency Thermo-Tube heating system
            • Built-in, manual filtration
            • Thermatron controller (standard)
            • Electronic ignition
            • Stainless steel frypot, door, and cabinet sides
            • Robust RTD, 1° compensating temperature probe
            • Wide cold zone, 1-1/4" to 1-1/2" full-port IPS ball-type drain valve
            • Combination gas valve with regulator
            • Melt cycle and boil-out mode
            • Casters
            • Drain safety switch

            Optional Features
            Spreader Cabinet, External Oil (Rear), Front Washdown, Basket Lifts (not available with Thermatron Controller)
            Dimensions
            Width
            15.5" (39.4 cm) | 31" (78.8 cm) | 46.5" (118 cm) | 62" (157.5 cm)
            Depth
            31.25" (79.4 cm)
            Height
            45" (114.3 cm)
            Net Weight
            354-lbs. (161 kg) | 575-lbs. (260.8 kg) | 800-lbs. (362.9 kg) | 1,130-lbs. (512.6 kg)
            Gas Requirements
            Gas Type
            Natural Gas | LP
            Incoming Gas Pressure
            6" W.C. - 11" W.C.
            Domestic BTU Rating
            100,000 Btu/hr. (29.3 kw)
            Power Requirements
            Domestic
            Controls
            120V 1 A
            Filter
            120V 6.6 A
            Basket Lifts
            120V 3 A
            Certifications
            • CSA Design (CA)
            • CSA (CA &US)
            • CSA Design (US)
            • NSF
            • CE Certified
            • Energy Star

            Resources

            Filter Options

            Filter
