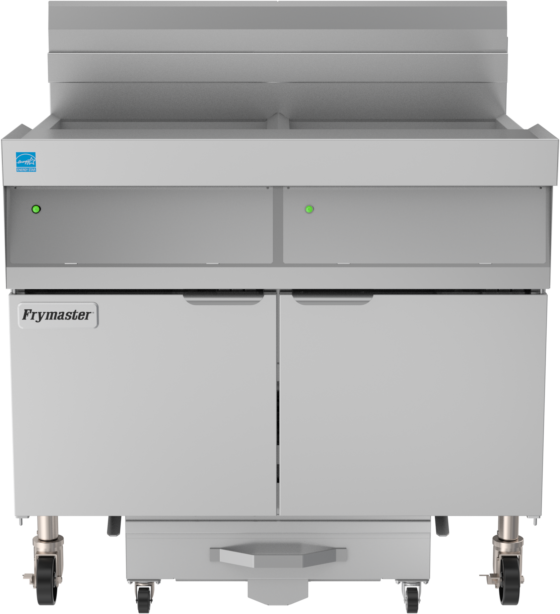

            FPLHD265 Thermatron Doors Closed No Basket Front
            Energy Type
            Gas Type
            Number of Vats
            Controller
            Filtration
            Basket Lifts

            LHD65

            High Efficiency Gas Fryers

            With Built-In Filtration

            Models
            FPLHD265 | FPLHD365

            The LHD65 is a tube-style, low flue temperature gas fryer built for high-volume performance and exceeds ENERGY STAR® guidelines—qualifying for energy savings rebates. With fast heat-up and recovery, low idle costs, and reduced ambient temperatures, it delivers powerful frying with lower gas consumption and greater operational savings.

            Key Features

            Energy Efficiency that Translates to Savings
            Frymaster's Thermo-Tube design provides an additional 2” of tube height and 36% more heat transfer surface area. This reduces the heat per square inch on the oil by 22%, for more efficient heat transfer and longer lasting oil life.

            Precision Control for Perfect Results

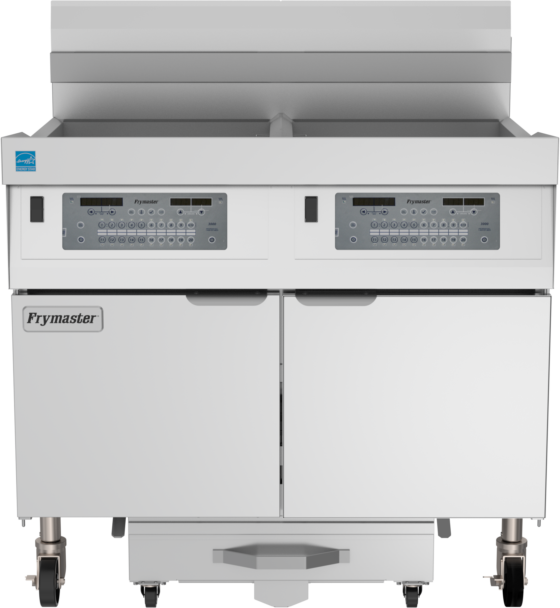

            Maintain consistent food and oil quality with the 3000 controller, featuring programmable cook buttons and a segmented cook mode—ideal for frying bone-in chicken and other menu items that require precise timing.

            Maximum Output, Minimal Waste
            With 105,000 BTU/hr input and a thermo-tube design, this fryer drives energy directly into the oil for fast heat-up, quick recovery, and reduced gas use. Controlled flow diffusers and low flue temperatures (550°F or less) help lower idle costs and ambient heat—delivering powerful performance with ENERGY STAR® efficiency.


            Specifications
            Oil Capacity
            100-lbs. (50L)PER FULL FRYPOT
            Pot Type
            Tube
            Frying Area

            18" x 18" x 5.75" (46 x 46 x 15 cm) PER FULL FRYPOT
            Energy Type
            Gas
            Power
            105,000 Btu/hr. (30.2 kW)PER FULL FRYPOT
            Controller
            3010
            Standard Features
            • Thermo-Tube frypot design
            • ENERGY STAR® qualified, Eligible for energy-saving rebates
            • Built-in, manual filtration
            • Low flue temperature (<550°F/287°C)
            • Electronic ignition
            • Wide cold zone
            • 8 GPM filter pump
            • Drain safety switch
            • Drain flush, 1-1/2" drain valve, 3" drain
            • Stainless steel frypot, door, and cabinet sides
            • Casters
            • 11" plate shelf with marine edge
            Optional Features
            External Oil (Rear), Front Washdown
            Dimensions
            Width
            40" (101.6 cm) | 60" (152.4 cm)
            Depth
            36.25" (92.1 cm)
            Height
            43" (109.2 cm)
            Net Weight
            750-lbs. (340 kg) | 1,100-lbs. (499 kg)
            Gas Requirements
            Gas Type
            Natural Gas | LP
            Incoming Gas Pressure
            6" W.C. - 11" W.C.
            Domestic BTU Rating
            105,000 Btu/hr. (30.2 kW)
            Power Requirements
            Domestic
            Controls
            120V 1 A
            Filter
            120V 6.6A
            Export
            Controls
            220V 1 A | 230V 1 A | 250V 1 A
            Filter
            220V 3.1 A | 230V 3.1 A | 250V 3.1 A
            Certifications
            • CSA Design (CA)
            • CSA (CA &US)
            • CSA Design (US)
            • NSF
            • CE Certified
            • Energy Star

            Resources

            Filter Options

            Filter
