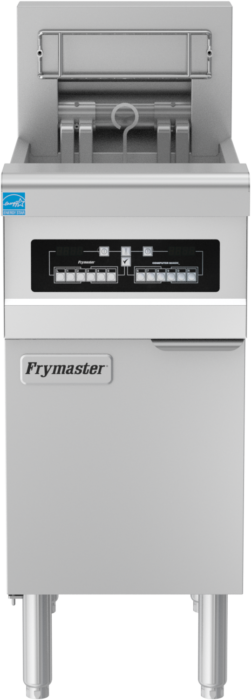

            RE14 CM35 Doors Closed No Basket Front
            Energy Type
            Power
            Number of Vats
            Controller
            Filtration
            Basket Lifts

            RE14

            High Efficiency Electric Fryers

            Models
            RE14

            Frymaster RE14 fryers are built to last, delivering dependable performance, lower energy costs, and longer oil life. Designed for busy kitchens, they help you serve consistent, high-quality food while reducing maintenance and operating expenses.

            Test link to Filtration RE14 models

            Key Features

            Durable, Energy-Efficient Heating Elements
            Frymaster's proprietary self-standing, swing-up, flat bar, low-watt density heating elements provide efficient heat transfer and long service life, contributing to the fryer's overall energy efficiency.

            Keep the Kitchen Cool
            By directing more energy into the oil and less into the surrounding air, these fryers reduce ambient heat, improve employee comfort, and lessen the load on HVAC systems.

            Maximize Efficiency, Minimize Cost
            RE fryers deliver industry-leading energy efficiency with ASTM ratings over 83%, earning ENERGY STAR® certification and qualifying for energy-saving rebates. Built-in filtration extends oil life—saving thousands annually—while the award-winning design ensures consistent, high-quality performance.

            Flexible Frying, Consistent Results
            Frymaster RE fryers support a wide range of frying needs with 14 kW and 17 kW models, customizable controllers, and basket lift options. The RTD temperature probe ensures precise heat response for consistent, high-quality results while extending oil life.

            RE Electric Fryers Overview
            Specifications
            Oil Capacity
            50-lb. (25L)PER FULL FRYPOT
            Pot Type
            Open Pot
            Frying Area

            14” x 15.5” x 3.75” (35.6 x 39.4 x 9.5 cm) per full frypot

            6.75” x 15.5” x 3.75” (17.1 x 39.4 x 9.5 cm) per split frypotPER FULL FRYPOT
            Energy Type
            Electric
            Power
            Domestic
            14 kW (full frypot) 7 kW (split frypot)PER FULL FRYPOT
            Export
            14 kW (full frypot) 7 kW (split frypot)PER FULL FRYPOT
            Controller
            CM3.5
            Standard Features
            • Open frypot (full or split) design
            • Proprietary, self standing, swing up, flat bar, low watt density, long life heating elements
            • Robust, RTD 1° compensating temperature probe
            • CM3.5 controller (standard)
            • Melt cycle and boil out mode
            • Deep cold zone with 1-1/4" (3.2 cm) IPS, full-port, ball-type drain valve for full frypots; 1" IPS full-port ball-type drain valve for split frypots
            • Drain safety switch
            • Rear oil flush
            • Stainless steel frypot, door, and cabinet sides
            • Legs
            Optional Features
            Split Frypot, Spreader Cabinet, External Oil (Rear), Basket Lifts (not available with Digital Timer Controller)
            Dimensions
            Width
            15.63" (39.7 cm)
            Depth
            31" (78.6 cm)
            Height
            45.38"(115.2 cm)
            Net Weight
            190-lbs. (86 kg)
            Electrical
            Power
            14 KW
            Domestic
            Elements PER FRYPOT
            Voltage
            208V | 240V | 480V
            3 Phase
            39 A | 34 A | 17 A
            1 Phase
            67 A | 58 A | N/A
            Controls PER FRYPOT
            1 A | 1 A | 120V 1 A
            Basket Lifts PER FRYPOT
            2 A | 2 A | 120V 3 A
            Export
            Elements PER FRYPOT
            Voltage
            220V/380V | 230V/400V | 240V/415V
            3 Phase
            22 A | 21 A | 20 A
            1 Phase
            N/A
            Basket Lifts PER FRYPOT
            2 A | 2 A | 2 A
            Certifications
            • CUL Listed
            • NSF
            • CE Certified
            • Energy Star
