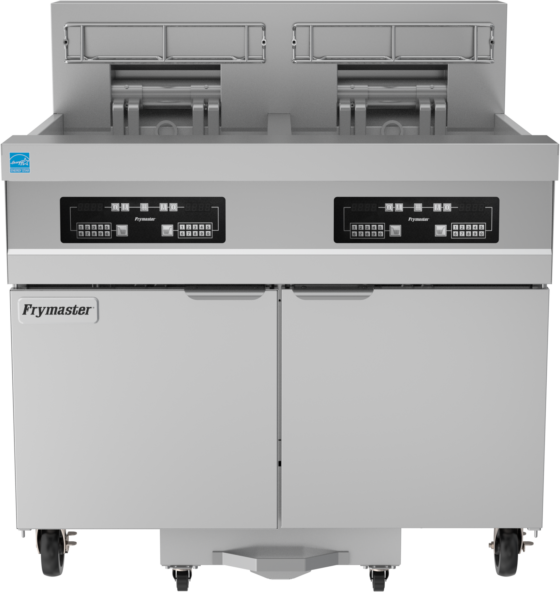

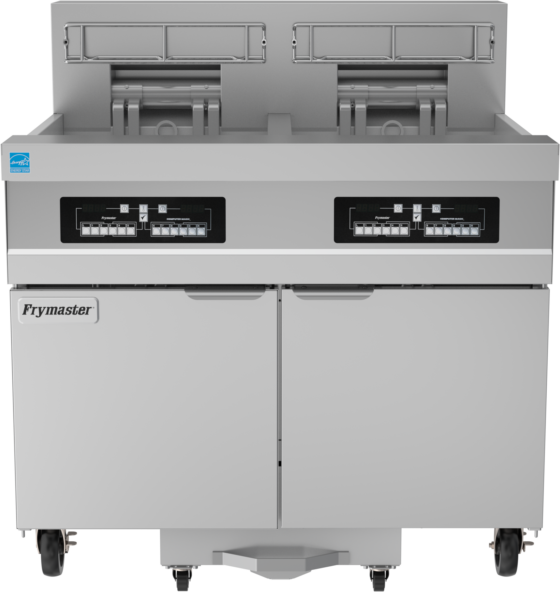

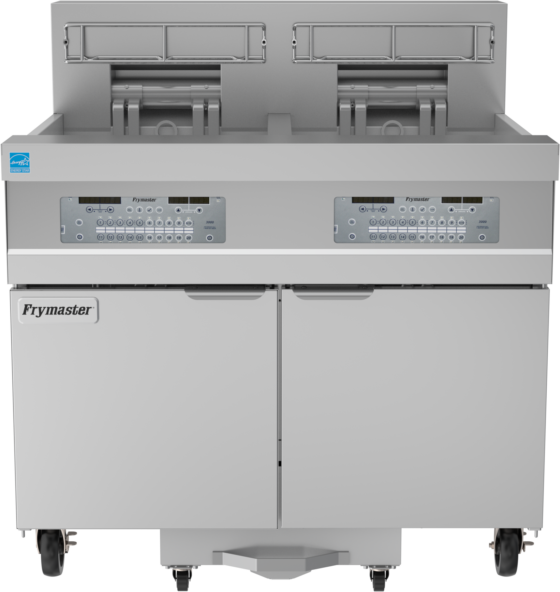

            FPRE280 Digital Timer Doors Closed No Basket Front
            Energy Type
            Power
            Number of Vats
            Controller
            Filtration
            Basket Lifts

            RE80

            High Efficiency Electric Fryers

            With Built-in Filtration

            Models

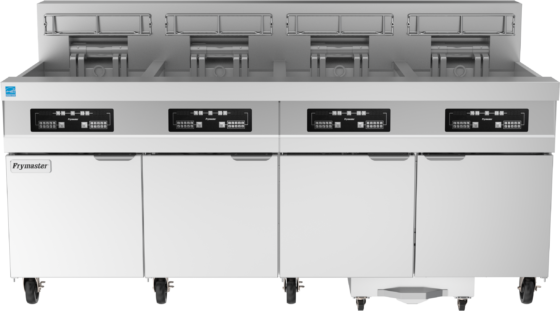

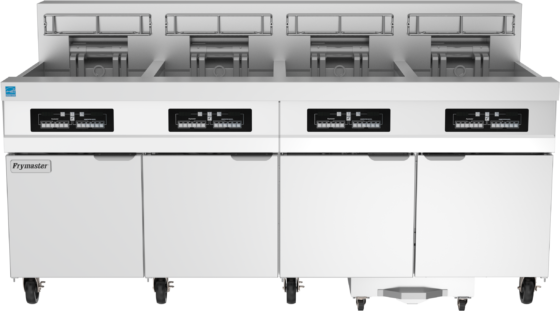

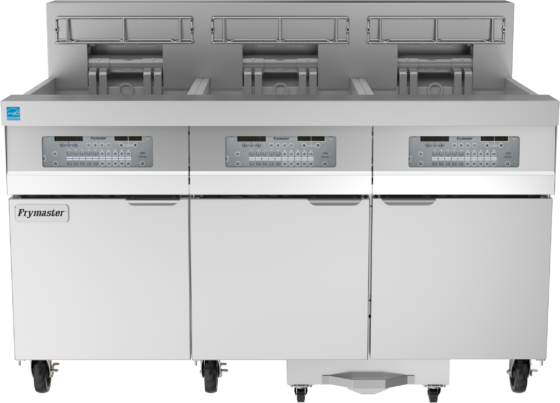

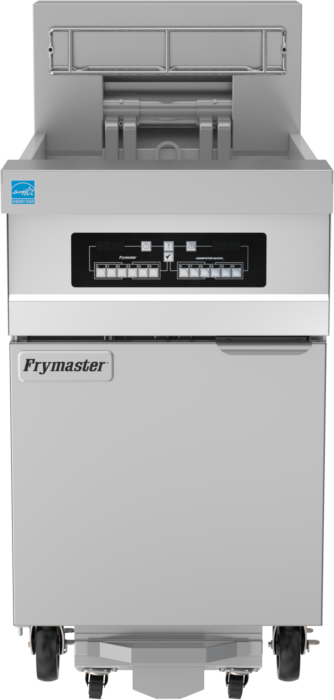

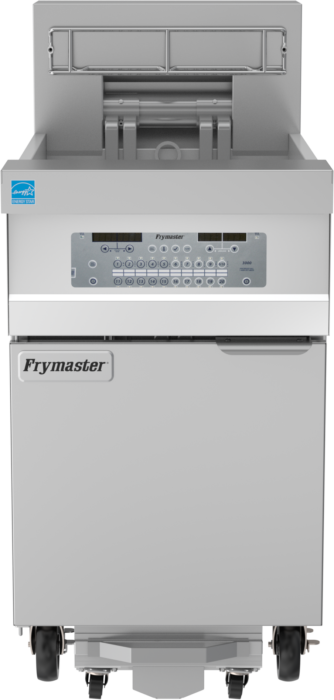

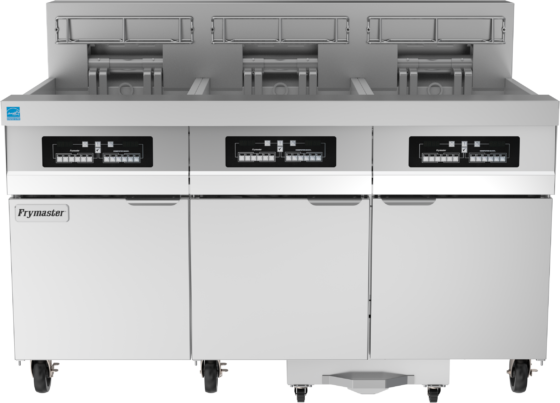

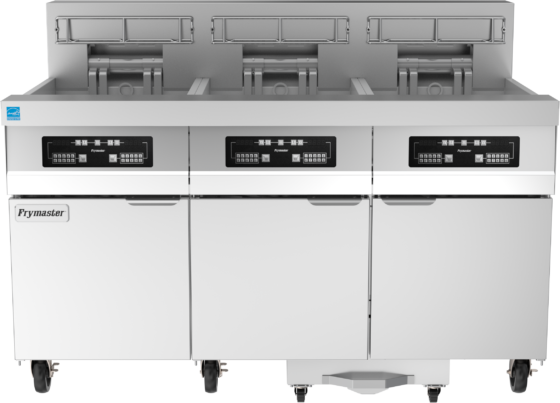

            FPRE180 | FPRE280 | FPRE380 | FPRE480

            Engineered for high-volume frying and heavy sediment loads, Frymaster’s RE80 electric fryers deliver exceptional performance with 83% ASTM energy efficiency. With a spacious 18" x 18" frying area and the capacity to produce up to 84 lbs. of French fries per hour, these fryers are ideal for busy kitchens serving bone-in chicken and fresh-breaded items. These versatile fryers are an all-in-one solution for high-demand operations.

            Key Features

            Durable, Energy-Efficient Heating Elements
            Frymaster's proprietary self-standing, swing-up, flat bar, low-watt density heating elements provide efficient heat transfer and long service life, contributing to the fryer's overall energy efficiency.

            Flexible Frying, Consistent Results
            Frymaster RE80 fryers support a wide range of frying needs with 17 kW and 21 kW models, customizable controllers, and basket lift options.

            Maximize Efficiency, Minimize Cost
            RE80 fryers deliver industry-leading energy efficiency with ASTM ratings over 83%, earning ENERGY STAR® certification and qualifying for energy-savings rebates. Built-in filtration extends oil life—saving thousands annually—while the award-winning design ensures consistent, high-quality performance.

            Keep the Kitchen Cool
            By directing more energy into the oil and less into the surrounding air, these fryers reduce ambient heat, improve employee comfort, and lessen the load on HVAC systems.

            Specifications
            Oil Capacity
            80-lb. (40L)PER FULL FRYPOT
            Pot Type
            Open Pot
            Frying Area

            18" x 18" x 4.63" (45.7  x 45.7 x 11.8 cm)PER FULL FRYPOT
            Energy Type
            Electric
            Power
            Domestic
            17 kW | 21 kWPER FULL FRYPOT
            Export
            17 kW | 21 kWPER FULL FRYPOT
            Controller
            3010
            Standard Features
            • Open frypot design
            • Proprietary, self standing, swing up, flat bar, low watt density, long life heating elements
            • Built-in, manual filtration
            • Robust, RTD 1° compensating temperature probe
            • Digital Timer controller (standard)
            • Stainless steel frypot, door and cabinet sides
            • Melt cycle and boil out mode
            • Deep cold zone with sloped bottom for fast, thorough draining
            • Drain safety switch
            • Rear oil flush
            • Casters
            • 8 GPM pump
            Optional Features
            Spreader Cabinet, External Oil (Rear), Front Washdown, Basket Lifts (not available with Digital Timer Controller)
            Dimensions
            Width
            20" (50.8 cm) | 40" (101.6 cm) | 60" (152.4 cm) | 80" (203.2 cm)
            Depth
            39.63" (100.7 cm)
            Height
            44.75" (113.7 cm)
            Net Weight
            359-lbs. (163 kg) | 617-lbs. (280 kg) | 816-lbs. (370 kg) | 1,044-lbs. (757 kg)
            Electrical
            Power
            17 KW | 21 KW
            Domestic
            Elements PER FRYPOT
            Voltage
            208V | 240V | 480V
            3 Phase
            48 A | 41 A | 21 A | 57 A | 51 A | 26 A
            Controls PER FRYPOT
            1 A | 1 A | 120V 1 A
            Filter
            3.5 A | 3.1 A | 120V 6.6 A
            Basket Lifts PER FRYPOT
            2 A | 2 A | 120V 3 A
            Export
            Elements PER FRYPOT
            Voltage
            220V/380V | 230V/400V | 240V/415V
            3 Phase
            24 A | 25 A | 24 A | 29 A | 30 A | 29 A
            Controls PER FRYPOT
            1 A | 1 A | 1 A
            Filter
            4 A | 4 A | 4 A
            Basket Lifts PER FRYPOT
            2 A | 2 A | 2 A
            Certifications
            • CUL Listed
            • NSF
            • CE Certified
            • Energy Star
