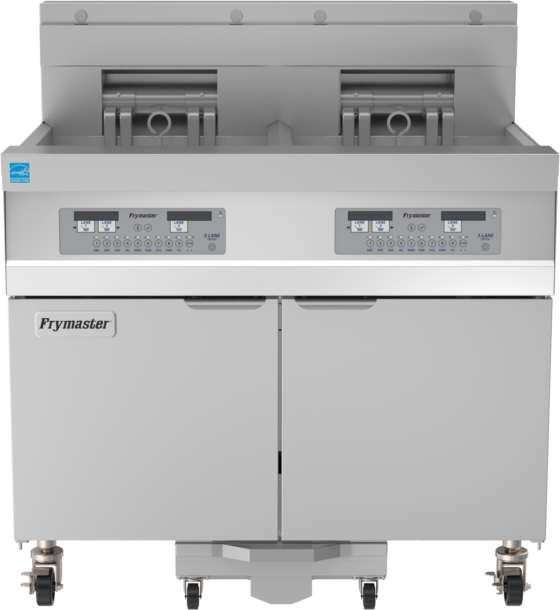

            21814 EF Lane Doors Closed No Basket Front
            Energy Type
            Power
            Number of Vats
            Controller
            Filtration
            Basket Lifts

            1814

            Oil Conserving Electric Fryers

            With Built-In Filtration

            Models
            11814EF | 21814EF | 31814EF

            The Frymaster 1814E is engineered for high-volume kitchens that demand efficiency, consistency, and space optimization. With a 63-lb. frypot and an expansive 18" ×14” cooking area, it delivers the output of larger fryers while conserving oil, energy, and floor space. Its advanced heating system and precise temperature controls ensure superior food quality and extended oil life, making it a smart choice for operators focused on performance and sustainability.

            Key Features

            Powerful Performance, Lower Cost
            1814 electric fryers have proprietary long-life, self-standing elements that transfer 89% of the heat into the oil. Compared to conventional high-production electric fryers, this design delivers up to 30% energy savings, significantly reducing operating costs while maintaining high throughput.

            More Frying Power, Less Oil Waste
            The 63-lb. frypot is optimized to create an 18" x 14" frying area that accommodates 3 baskets of product. Compared to a standard 50-lb. fryer configuration, achieving the same output would require an additional 75-lbs. of oil—highlighting the 1814’s superior oil utilization and throughput efficiency.

            Maximize Output, Minimize Space
            Two 1814 frypots deliver the same output as 3 standard 50-lb. frypots, while using 10–15% less hood space—boosting productivity without increasing footprint.

            Specifications
            Oil Capacity
            63-lb. (31L)PER FULL FRYPOT
            Pot Type
            Open Pot
            Frying Area

            18" x 14" x 4.75" (45.7 x 35.6 x 12.1 cm)PER FULL FRYPOT
            Energy Type
            Electric
            Power
            Domestic
            14 kWPER FULL FRYPOT
            Export
            14 kWPER FULL FRYPOT
            Controller
            Lane
            Standard Features
            • 17 kW input per frypot meets high production demands of a varied menu
            • Built-in, manual filtration
            • Lane controller has programmable cook buttons and features that make it easy to produce consistent great tasting food
            • Proprietary, self standing, swing up, flat bar low watt density long life heating elements
            • High Energy efficiency and production capacity
            • Robust, RTD 1° compensating temperature probe
            • Stainless steel frypot, door, and sides
            • Sturdy stainless steel basket hangers
            • Three twin baskets per frypot
            • Casters
            Optional Features
            Spreader Cabinet, Basket Lifts (not available with Digital Timer Controller)
            Dimensions
            Width
            20" (50.8 cm) | 40" (101.6 cm) | 60" (152.4 cm)
            Depth
            30.88" (78.4 cm)
            Height
            45.38" (115.3 cm)
            Net Weight
            255.3-lb. (115.8 kg) | 585-lb. (265 kg) | 815-lb. (370 kg)
            Electrical
            Power
            17 KW
            Domestic
            Elements PER FRYPOT
            Voltage
            208V | 240V | 480V
            3 Phase
            48 A | 41 A | 21 A
            Controls PER FRYPOT
            1 A | 1 A | 120V 1 A
            Filter
            3.5 A | 3.1 A | 120V 6.6 A
            Export
            Elements PER FRYPOT
            Voltage
            220V / 380V | 230V / 400V | 240V / 415V
            3 Phase
            26 A | 25 A | 24 A
            Controls PER FRYPOT
            1 A | 1 A | 1 A
            Filter
            3.1 A | 3.1 A | 3.1 A
            Certifications
            • CUL Listed
            • NSF
            • CE Certified
            • Energy Star
