1814

Name: Welbilt
Price range: $

Oil Conserving Gas Fryers

With Built-In Filtration

Models

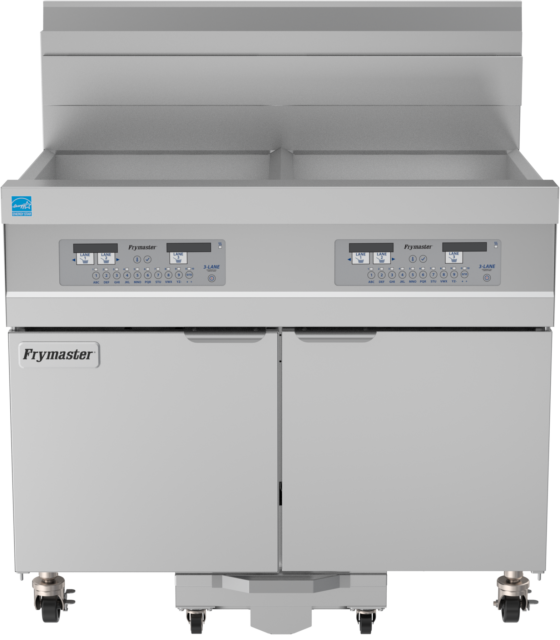

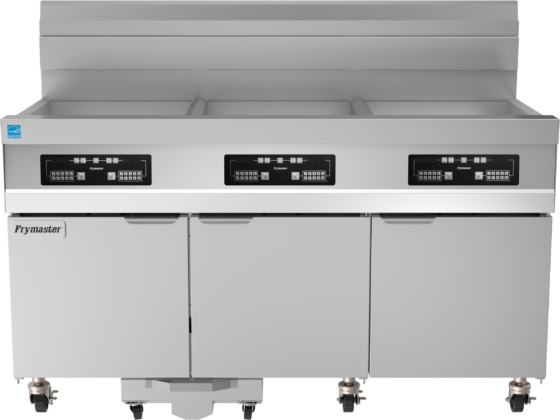

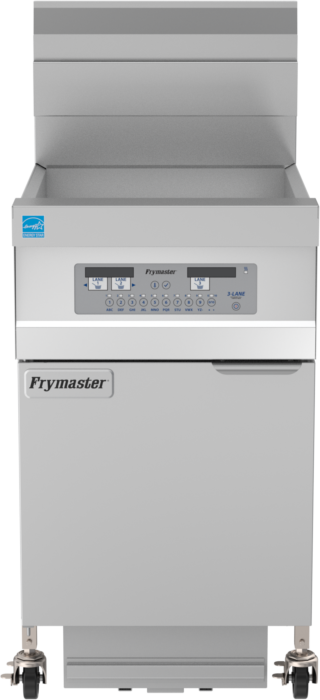

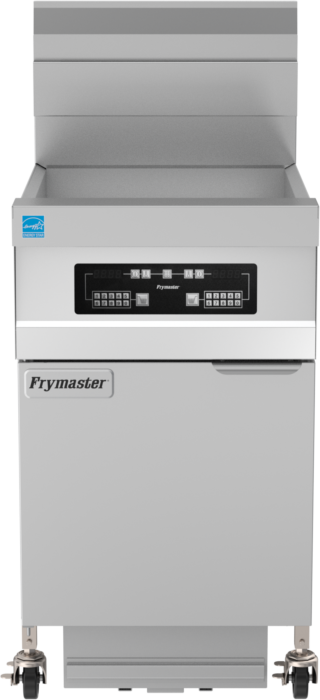

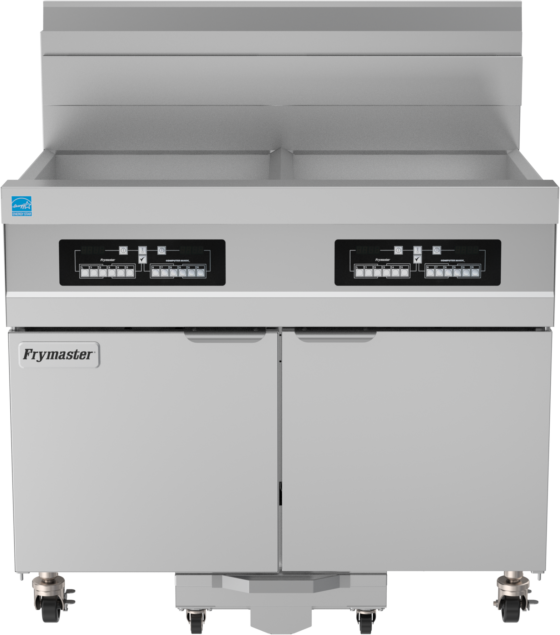

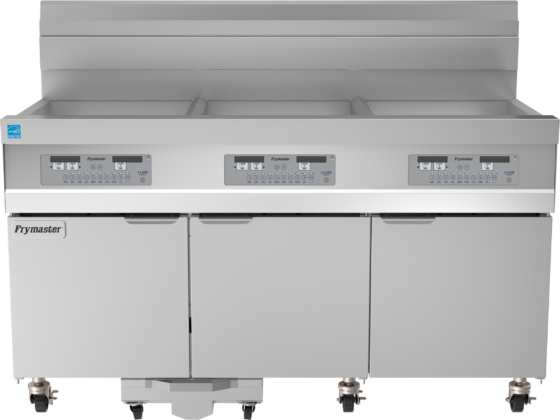

11814GF | 21814GF | 31814GF

The Frymaster 1814G is engineered for high-volume kitchens that demand efficiency, consistency, and space optimization. With a 63-lb. frypot and an expansive 18” × 14” cooking area, it delivers the output of larger fryers while conserving oil, energy, and floor space. Its advanced heating system and precise temperature controls ensure superior food quality and extended oil life, making it a smart choice for operators focused on performance and sustainability.

Key Features

More Frying Power, Less Oil Waste

The 63-lb. frypot is optimized to create an 18" x 14" frying area that accommodates 3 baskets of product. Compared to a standard 50-lb fryer configuration, achieving the same output would require an additional 75 lbs. of oil—highlighting the 1814’s superior oil utilization and throughput efficiency.

Maximize Output, Minimize Space

Two 1814 frypots deliver the same output as three standard 50-lb. frypots, while using 10–15% less hood space—boosting productivity without increasing footprint.

Energy Efficiency that Translates to Savings

Frymaster's Thermo-Tube design provides an additional 2” of tube height and 36% more heat transfer surface area. This reduces the heat per square inch on the oil by 22%, for more efficient heat transfer and longer lasting oil life.

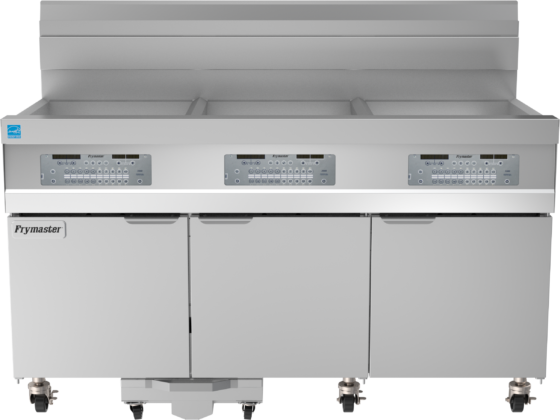

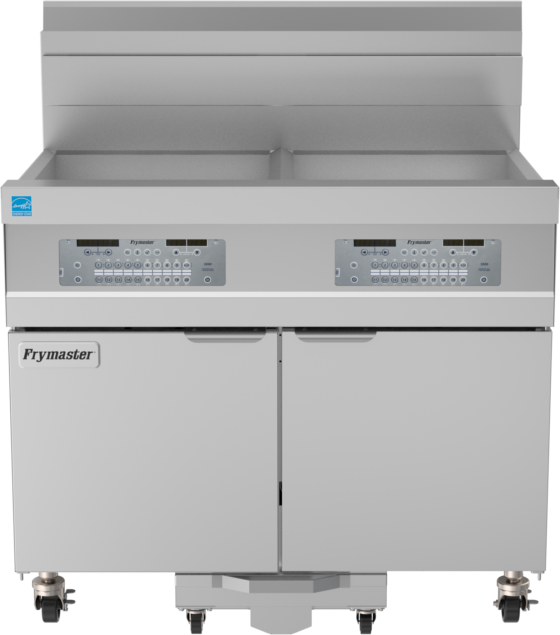

Some Wacky 3000 Controller

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.

Another Option - All

Exercising the imagination, experimenting with talents, being creative; these things, to me, are truly the windows to your soul. In life you need colors. This is unplanned it really just happens. How do you make a round circle with a square knife? That's your challenge for the day.

Volunteering your time; it pays you and your whole community fantastic dividends. Trees get lonely too, so we'll give him a little friend. You can get away with a lot. You can't make a mistake. Anything that happens you can learn to use - and make something beautiful out of it.

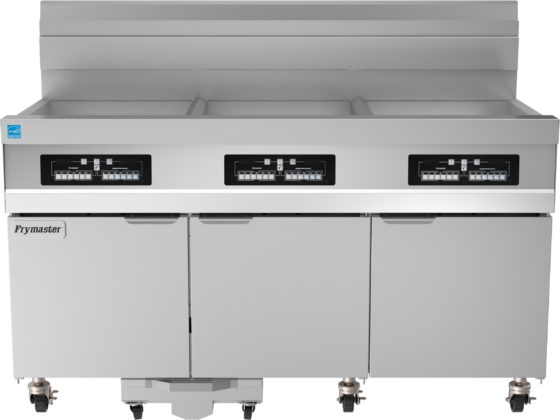

Smaller Key Features (2/3 Vats)

You can get away with a lot. If you don't think every day is a good day - try missing a few. You'll see. I like to beat the brush.

Caroly & Josh Demo

Four Vats feature description.

Specifications

Oil Capacity

63-lb. (31L)^{PER FULL FRYPOT}

Pot Type

Tube

Frying Area

18" x 14" x 3.75" (45.7 x 35.6 x 9.5 cm)^{PER FULL FRYPOT}

Energy Type

Gas

Power

119,000 BTU/hr. (33.7kW)^{PER FULL FRYPOT}

Controller

Lane

Standard Features

Lane controller with programmable cook buttons
Built-in, manual filtration
Thermo-tube heat transfer system efficiently transfers energy into the oil, saving energy and extending oil life
Robust, RTD 1° compensating temperature probe
Wide cold zone traps sediment away from cooking area, safeguarding oil
Stainless steel frypot, door, and sides
Sturdy stainless steel over the flue basket hangers
Three twin baskets per frypot
Drain safety switch

Optional Features

Spreader Cabinet, Bulk Oil (incoming & outgoing), External Oil (Rear), Front Washdown, Basket Lifts (not available with Digital Timer Controller)

Dimensions

Width

20" (50.8 cm) | 40" (101.6 cm) | 60" (152.4 cm)

Depth

33.1" (84.1 cm)

Height

47.8" (121.3 cm)

Net Weight

390-lb. (177 kg) | 645-lb. (293 kg) | 900-lb. (408 kg)

Gas Requirements

Gas Type

Natural Gas | LP

Incoming Gas Pressure

6" W.C-11" W.C.

Domestic BTU Rating

119,000 BTU/hr. (33.7kW)

Power Requirements

Domestic

Controls

120V 1 A | 220V 5 A

Filter

120V 8 A | 220V 5 A

Export

Controls

230V 1 A

Filter

230V 5 A
