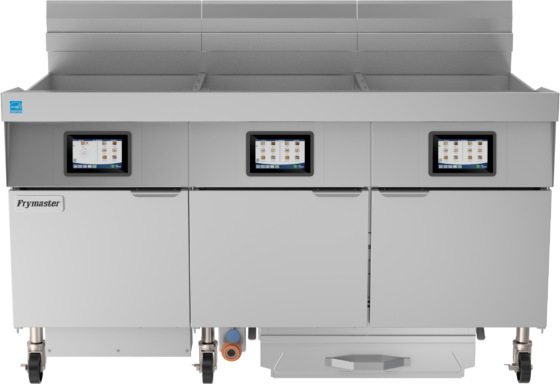

            3 FQG120 FQ4000easy Touch Doors Closed No Basket Front
            Energy Type
            Gas Type
            Number of Vats
            Controller
            Filtration
            Basket Lifts

            FilterQuick® 120 Gas Fryers

            With Automatic Filtration

            Models

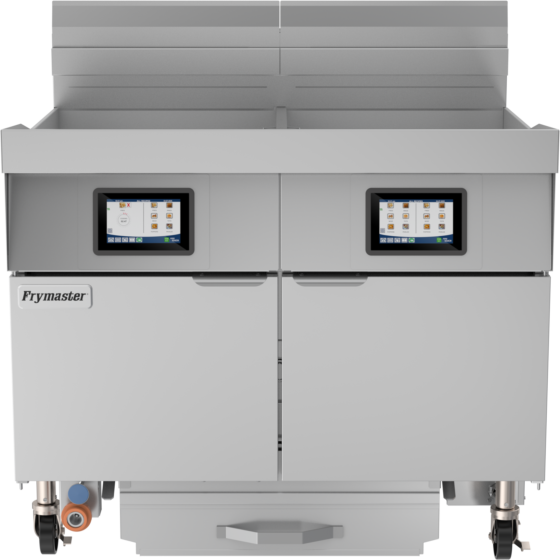

            2FQG120 | 3FQG120

            The FilterQuick 120 gas fryer delivers powerful performance with a 120-lb. oil capacity and 105,000 BTU/hr input, making it ideal for high-volume frying of bone-in chicken and fresh-breaded items. Its advanced Thermo-Tube design and controlled flow diffusers maximize energy efficiency, resulting in fast heat-up, low idle costs, and reduced exhaust temperatures. This fryer is built for speed, savings, and superior results.

            Key Features

            Energy Efficiency that Translates to Savings
            Frymaster's Thermo-Tube design provides an additional 2” of tube height and 36% more heat transfer surface area. This reduces the heat per square inch on the oil by 22%, for more efficient heat transfer and longer lasting oil life.

            FQ4000 easyTouch Controller
            The durable touchscreen controller simplifies cooking and filtering operations with features like programmable recipes, oil quality monitoring, and cloud connectivity.

            Built-in Automatic Filtration with Optional Oil Quality Sensor (OQS)
            Simplifies oil management with push-button filtration and offers real-time oil health monitoring when paired with the optional OQS—extending oil life and maintaining optimum food quality.

            Optimized for Fresh-Breaded Frying & Easy Service
            The filter pan and pre-screen filter are built to handle heavy sediment from fresh-breaded products. Key service components, including the filter pan switch and transformer box, are conveniently accessible from the front of the fryer for streamlined maintenance.

            Specifications
            Oil Capacity
            120-lbs. (54L)PER FULL FRYPOT
            Pot Type
            Tube
            Frying Area

            18" x 18" x 5.75" (45.7 x 45.7 x 15 cm)PER FULL FRYPOT
            Energy Type
            Gas
            Power
            105,000 BTU/hr. (30.2 kW)PER FULL FRYPOT
            Controller
            FQ4000 EasyTouch®
            Standard Features
            • FQ4000 easyTouch controller
            • Thermo-Tube heat transfer system
            • Robust, RTD 1° compensating temperature probe
            • Stainless  steel frypot, door, and cabinet sides
            • Built-in, automatic filtration with rear oil flush
            • Innovative safety features offer proprietary advantages over other fryers—prevent simultaneous vat filtrations
            • Front oil disposal comes with 6ft washdown hose
            • 8 GPM pump
            • Electronic ignition
            • Wide cold zone
            • Drain safety switch
            Optional Features
            Optional Oil Quality Sensor, Semi Solid Shortening Kit
            Dimensions
            Width
            43.8" (111.3 cm) | 65.4" (166.1 cm)
            Depth
            40" (101.6 cm)
            Height
            43" (109.2 cm)
            Net Weight
            750-lbs. (340 kg) | 1,100-lbs. (499 kg)
            Gas Requirements
            Gas Type
            Natural Gas | LP
            Incoming Gas Pressure
            6" W.C. - 11" W.C.
            Domestic BTU Rating
            105,000 BTU/hr. (30.2 kW)
            Power Requirements
            Domestic
            Controls
            120V 3 A
            Filter
            120V 6.6 A
            Export
            Controls
            230V 1.5 A
            Filter
            230V 3.1 A
            Certifications
            • CSA Design (CA)
            • CSA (CA &US)
            • CSA Design (US)
            • NSF
            • Energy Star

            Resources

            Filter Options

            Filter
