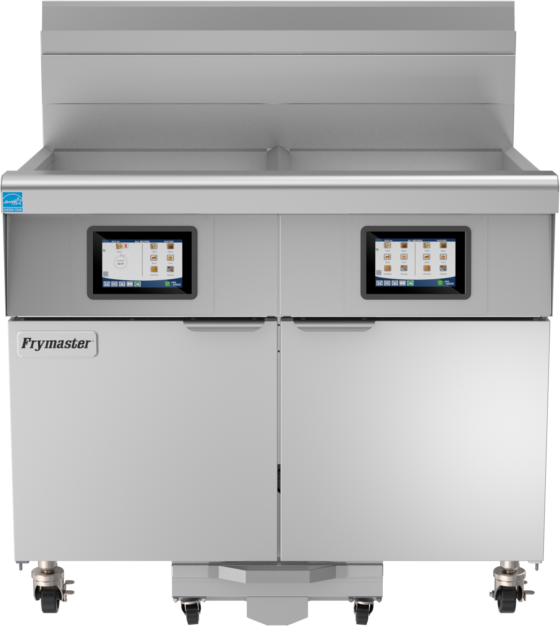

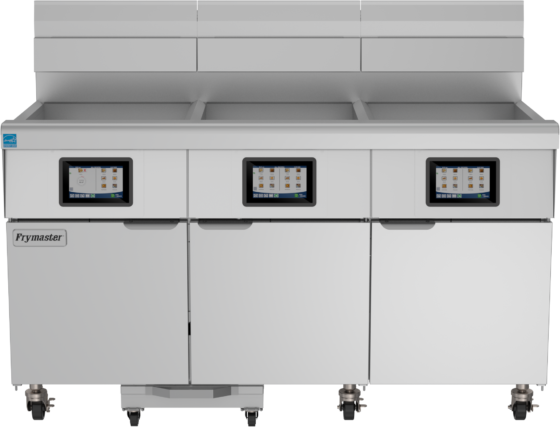

            2 FQG60 FQ4000easy Touch Doors Closed No Basket Front
            Energy Type
            Gas Type
            Number of Vats
            Controller
            Filtration
            Basket Lifts

            FilterQuick® 60 Gas Fryers

            With Automatic Filtration

            Models
            1FQG60 | 2FQG60 | 3FQG60

            The FilterQuick 60 is designed to meet the demands of busy kitchens with a compact footprint and powerful output. A two-battery unit handles the workload of three standard fryers, saving 15–20% on oil, up to 33% on energy, and 10–15% on space. That means less oil handling and more streamlined workflows that contribute to a cleaner, safer, and more productive environment.

            Key Features

            Maximize Output, Minimize Space
            Two FQ60 frypots deliver the same output as three standard 50-lb. frypots, while using 10–15% less hood space—boosting productivity without increasing footprint.

            FQ4000 easyTouch Controller
            The durable touchscreen controller simplifies cooking and filtering operations with features like programmable recipes, oil quality monitoring, and cloud connectivity.

            Built-in Automatic Filtration with Optional Oil Quality Sensor (OQS)
            Simplifies oil management with push-button filtration and offers real-time oil health monitoring when paired with the optional OQS—extending oil life and maintaining optimum food quality.

            Energy Efficiency that Translates to Savings
            Frymaster's Thermo-Tube design provides an additional 2” of tube height and 36% more heat transfer surface area. This reduces the heat per square inch on the oil by 22%, for more efficient heat transfer and longer lasting oil life.


            Specifications
            Oil Capacity
            63-lbs. (31L)PER FULL FRYPOT
            Pot Type
            Tube
            Frying Area

            18" x 14" x 3.75" (45.7 x 35.6 x 9.5  cm)PER FULL FRYPOT
            Energy Type
            Gas
            Power
            Domestic
            119,000 BTU/hr. (34.9 kW)PER FULL FRYPOT
            Export
            112,000 BTU/hr. (34.9 kW)PER FULL FRYPOT
            Controller
            FQ4000 EasyTouch®
            Standard Features
            • FQ4000 easyTouch controller
            • Robust, RTD 1° compensating temperature probe
            • Stainless steel frypot, door, and cabinet sides
            • Built-in, automatic filtration with rear oil flush
            • Innovative safety features offer proprietary advantages over other fryers—prevent simultaneous vat filtrations

            Optional Features
            Basket Lifts, Optional Oil Quality Sensor, Auto Top Off, Spreader Cabinet, Bulk Oil (incoming & outgoing), External Oil (Rear), Front Washdown, Semi Solid Shortening Kit
            Dimensions
            Width
            20" (50.8 cm) | 40" (101.6 cm) | 60" (152.4 cm)
            Depth
            33.13" (84.1 cm)
            Height
            47.75" (121.3 cm)
            Net Weight
            390-lb. (177 kg) | 645-lb. (293 kg) | 900-lb. (408 kg)
            Gas Requirements
            Gas Type
            Natural Gas | LP
            Incoming Gas Pressure
            6" W.C. - 11" W.C.
            Domestic BTU Rating
            119,000 BTU/hr. (34.9 kW)
            Power Requirements
            Domestic
            Controls
            120V 1 A | 220V 1 A
            Filter
            120V 8 A | 220V 5 A
            Certifications
            • CSA Design (CA)
            • CSA (CA &US)
            • CSA Design (US)
            • NSF
            • CE Certified
            • Energy Star

            Resources

            Filter Options

            Filter
