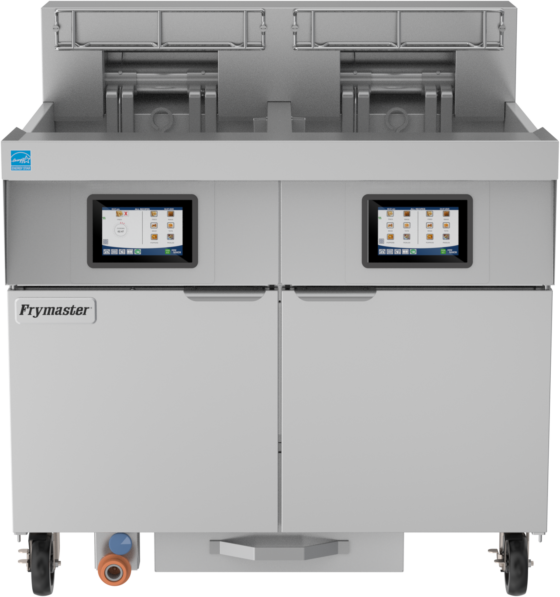

            2 FQE80 FQ4000easy Touch Doors Closed No Basket Front
            Energy Type
            Power
            Number of Vats
            Controller
            Filtration
            Basket Lifts

            FilterQuick® 80 Electric Fryers

            With Automatic Filtration

            Models

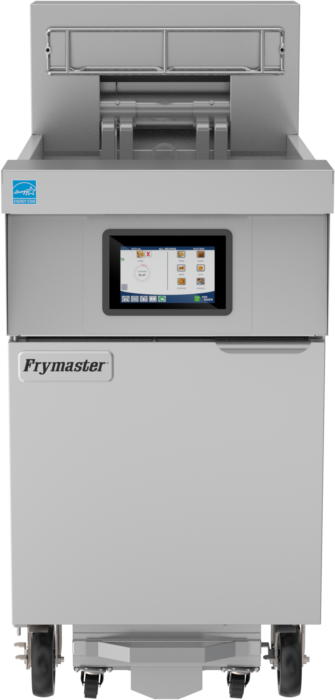

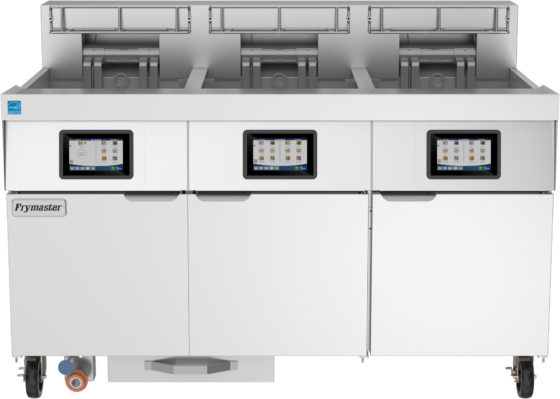

            1FQE80 | 2FQE80 | 3FQE80

            Engineered for performance and efficiency, the FilterQuick 80 electric fryer delivers an impressive 83% ASTM energy efficiency while producing up to 84 lbs. of fries per hour. Its spacious design and high-output capacity make it the perfect solution for busy kitchens serving bone-in chicken and fresh-breaded favorites.

            Key Features

            Durable, Energy-Efficient Heating Elements
            Frymaster's proprietary self-standing, swing-up, flat bar, low-watt density heating elements provide efficient heat transfer and long service life, contributing to the fryer's overall energy efficiency.

            FQ4000 easyTouch Controller
            The durable touchscreen controller simplifies cooking and filtering operations with features like programmable recipes, oil quality monitoring, and cloud connectivity.

            Built-in Automatic Filtration with Optional Oil Quality Sensor (OQS)
            Simplifies oil management with push-button filtration and offers real-time oil health monitoring when paired with the optional OQS—extending oil life and maintaining optimum food quality.


            Specifications
            Oil Capacity
            80-lb. 40LPER FULL FRYPOT
            Pot Type
            Open Pot
            Frying Area

            18" x 18" x 4.38" (45.7 x 45.7 x 11.1 cm)PER FULL FRYPOT
            Energy Type
            Electric
            Power
            Domestic
            17 kWPER FULL FRYPOT
            Export
            17 kWPER FULL FRYPOT
            Controller
            FQ4000 EasyTouch®
            Standard Features
            • FQ4000 easyTouch controller
            • Proprietary, self standing, swing up, flat bar low watt density long life heating elements
            • Robust, RTD 1° compensating temperature probe
            • Stainless  steel frypot, door, and cabinet sides
            • Built-in, automatic filtration with rear oil flush
            • Innovative safety features offer proprietary advantages over other fryers—prevent simultaneous vat filtrations
            • Front oil disposal comes with 6ft washdown hose

            Optional Features
            Optional Oil Quality Sensor, Spreader Cabinet, Semi Solid Shortening Kit
            Dimensions
            Width
            20" (50.8 cm) | 40" (101.6 cm) | 60" (152.4 cm)
            Depth
            39.63" (100.7 cm)
            Height
            45.38" (114.9 cm)
            Net Weight
            390-lb. (177 kg) | 640-lbs. (308 kg) | 814-lbs. (369 kg)
            Electrical
            Power
            17 KW
            Domestic
            Elements PER FRYPOT
            Voltage
            208 V | 240V | 480V
            3 Phase
            48 A | 41 A | 21 A
            Controls PER FRYPOT
            1 A | 1 A | 120V 1 A
            Filter
            3.5 A | 3.1 A | 120V 6.6 A
            Certifications
            • CUL Listed
            • NSF
            • CE Certified
            • Energy Star
